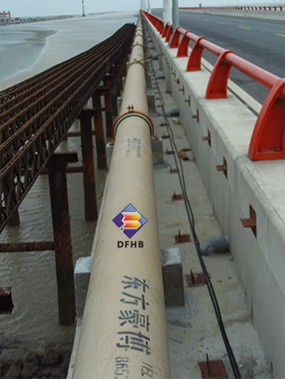

  • Above ground
    The installation of DFHB Pipes is subject to the requirements of the valid applicable standards, guidelines and accident prevention regulations. The installation of the pipelines should be planned and executed in accordance with good engineering practice and in compliance with all applicable standards.
    An expert and careful installation ensures that the performance expected from high quality DFHB Pipelines is achieved in practice.
    DN DA PN4 PN6
    SN5000 SN10000 SN5000 SN10000
    e kg/m e kg/m e kg/m e kg/m
    300 324 6.2 11.5 7.5 14.5 6.6 12.5 7.6 14.1
    400 427 7.8 19.4 9.3 24.1 8.3 21.0 9.5 23.9
    500 514 9.0 27.7 10.9 34.5 9.8 31.0 11.1 34.2
    600 616 10.5 39.6 12.8 49.3 11.1 41.3 13.1 48.8
    700 718 12.2 53.7 14.9 67.0 12.8 56.0 15.1 66.0
    800 820 13.7 6935 16.6 86.2 13.9 70.5 17.1 85.7
    900 924 15.3 88.1 18.6 110.1 15.6 89.7 19.1 108.4
    1000 1026 16.9 108.2 20.6 135.8 17.3 110.5 21.0 133.2
    1100 1127 18.4 130.4 22.5 163.5 18.8 127.6 23.0 160.6
    1200 1229 20.0 154.8 24.4 193.7 20.0 153.8 24.9 190.2
    1400 1434 23.1 209.9 28.4 264.9 23.2 208.9 28.9 258.3
    1500 1536 24.7 241.1 30.3 302.0 24.6 229.4 30.9 296.2
    1600 1638 26.3 273.6 32.1 342.7 26.4 271.5 32.8 336.2
    1800 1842 29.3 344.8 36.2 434.7 29.2 338.0 36.7 424.1
    2000 2046 32.5 424.1 40.0 534.8 32.3 417.7 40.5 521.1
    2200* 2250 35.5 512.5 43.8 645.0 35.5 504.5 44.4 629.0
    2400* 2400 37.8 583.0 46.5 732.9 37.8 573.6 47.2 714.9
    DN DA PN8 PN10 PN12 PN16 PN20 PN25
    SN10000 SN10000 SN10000 SN10000 SN10000 SN10000
    e kg/m e kg/m e kg/m e kg/m e kg/m e kg/m
    300 324 7.7 14.1 7.9 15.4 8.0 15.0 9.7 18.2 11.2 21.2 13.3 24.8
    400 427 9.7 23.9 10.1 26.0 10.0 25.2 12.2 30.5 13.7 34.4 16.4 40.4
    500 514 11.4 34.3 12.1 39.1 12.0 37.8 13.2 41.1 15.8 49.7 18.7 57.7
    600 616 13.3 48.8 13.8 52.1 13.7 50.6 14.5 53.7 18.1 68.3 21.2 75.9
    700 718 15.5 65.9 15.6 69.1 15.8 68.2 16.2 70.6 20.7 88.7 23.9 101.6
    800 820 17.4 85.6 17.0 87.3 17.1 86.1 17.3 87.5 22.5 110.8 26.6 127.9
    900 924 19.4 108.2 19.2 111.1 19.2 108.5 21.1 116.2 25.6 142.0 31.0 169.0
    1000 1026 21.3 132.7 21.2 136.9 21.2 133.5 23.1 141.6 28.1 173.0 33.8 204.6
    1100 1127 23.4 160.1 23.0 158.2 22.9 153.9 24.0 159.2 29.9 197.6
    1200 1229 25.3 189.2 25.0 194.1 24.9 188.1 27.2 199.7 33.0 244.0
    1400 1434 29.3 257.1 29.1 264.2 28.9 255.3 33.9 291.9 38.0 328.4
    1500 1536 31.4 295.0 30.6 289.9 30.4 280.4 35.4 318.8 39.9 360.1
    1600 1638 33.3 334.8 33.2 345.4 32.9 332.8 38.7 381.3 43.4 428.9
    1800 1842 37.3 422.3 36.7 430.5 36.3 413.8 42.9 476.0
    2000 2046 41.2 519.2 40.9 535.0 40.3 511.0
    2200* 2250 45.1 625.9 44.9 644.9 44.2 617.2
    2400* 2400 47.9 711.5 47.9 733.9 47.1 701.7
