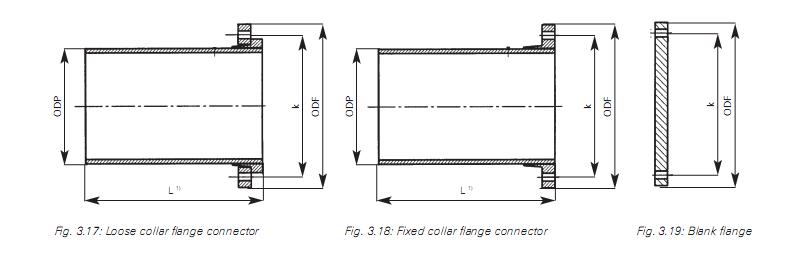

当前位置：首页 > 产品展示 > Products > DFHB GRP Flange Connectors
| DN | DA(mm) | Bolts | L(mm) | k(mm) | d2(mm) | D(mm) | b(mm) | PNmax | D(mm) |
| 300 | 324 | 12×M20 | 400 | 400 | 22 | 460 | 68 | 10 | 376 |
| 400 | 427 | 16×M24 | 400 | 515 | 26 | 585 | 82 | 10 | 487 |
| 500 | 514 | 20×M24 | 400 | 620 | 26 | 670 | 98 | 10 | 592 |
| 600 | 616 | 20×M27 | 400 | 725 | 30 | 780 | 112 | 10 | 693 |
| 700 | 718 | 24×M27 | 400 | 840 | 30 | 910 | 125 | 10 | 808 |
| 800 | 820 | 24×M30 | 500 | 950 | 33 | 1025 | 138 | 10 | 915 |
| 900 | 924 | 28×M30 | 500 | 1050 | 33 | 1125 | 125 | 6 | 1015 |
| 1000 | 1026 | 28×M33 | 500 | 1160 | 36 | 1255 | 135 | 6 | 1122 |
| 1200 | 1229 | 32×M36 | 500 | 1380 | 39 | 1484 | 140 | 6 | 1336 |
| 1400 | 1434 | 36×M33 | 500 | 1590 | 36 | 1675 | 120 | 1 | 1535 |
| 1600 | 1638 | 40×M33 | 500 | 1820 | 36 | 1915 | 1 | 1755 |
